In addition to supporting MMIs such as Allen-Bradley ControlView, Groupe Schneider FactoryMate, and InTouch, the Navigator environment includes SoftScope, which enables the development of MMIs within the application that can report PIM values graphically in real time.

Static images can be imported into SoftScope in PICT format, and a library of images that are determined by variable value can be easily established. The SoftScope development set includes strip charts, bar charts, moving pictures, text by value, static text, buttons, and so on. Values are easily added, and can be activated and deactivated at the click of the mouse.

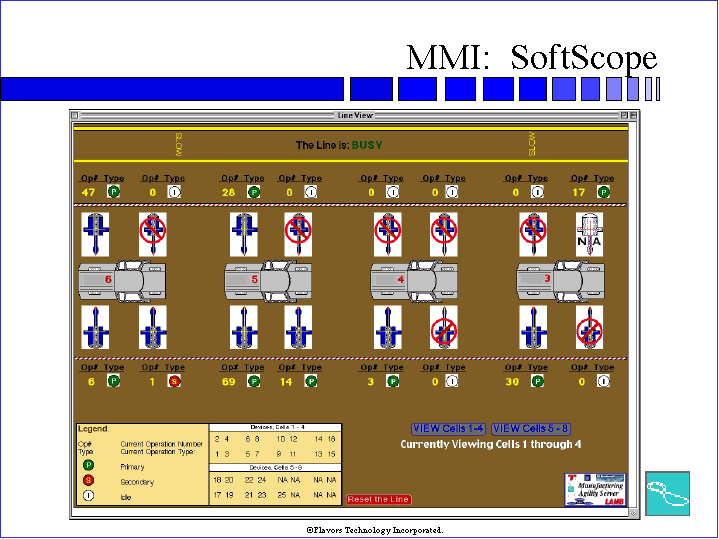

The example above is an automotive respot line, monitoring the operations and status of the robots on this particular section of the line.
