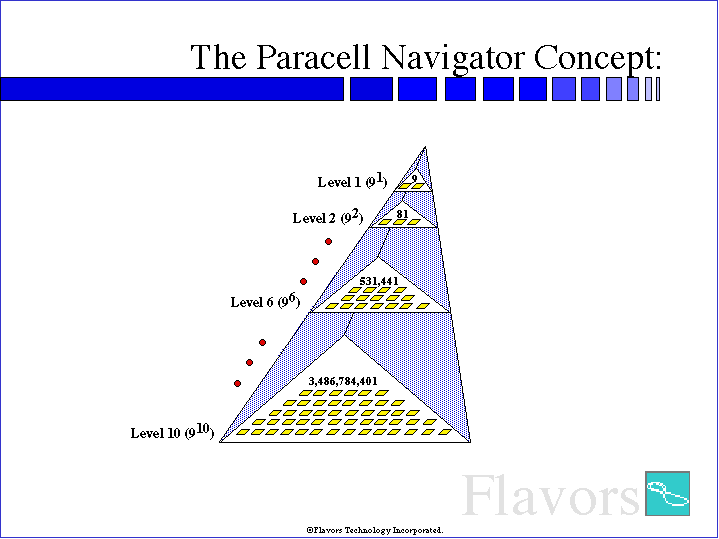

The graphic above is a representation of the Paracell Navigator concept. The number of tiles available to an application are represented in simplified fashion. In an actual application, some of these tiles will be used for I/O configuration, debuggers, SoftScope MMI displays, documentation, and so on.

The main point is that the environment provides ample resources to easily access the processing cells in an application. When developing an application, it becomes clear that it can be broken down into as fine a level of detail as the application developer desires.

Note that the location of a tile on the Navigator pyramid has no effect on the tile itself, or on the tile's function.
